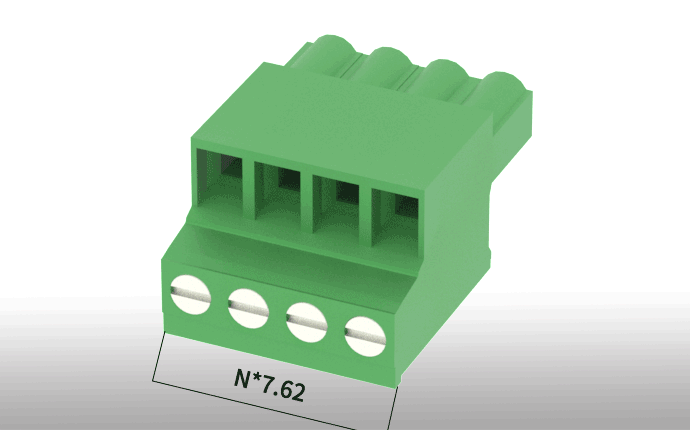

Pluggable Terminal Block KF203-7.62mm

Pluggable Terminal Block MATERIAL：MATERIALScrews: M2.5，Steel Zinc platedcontact: Phosphor bronzePin header: -Housing: PA66，UL94V-0ElectricalULIECRated voltage300V 320V/400VRated current15A20AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range28-14AWG 2.5mm2MechanicalTemp.rang-40℃～+105℃ Max.soldering+250℃, 5se

Color

Line count

Consult more

Product Parameters

Product Drawing
